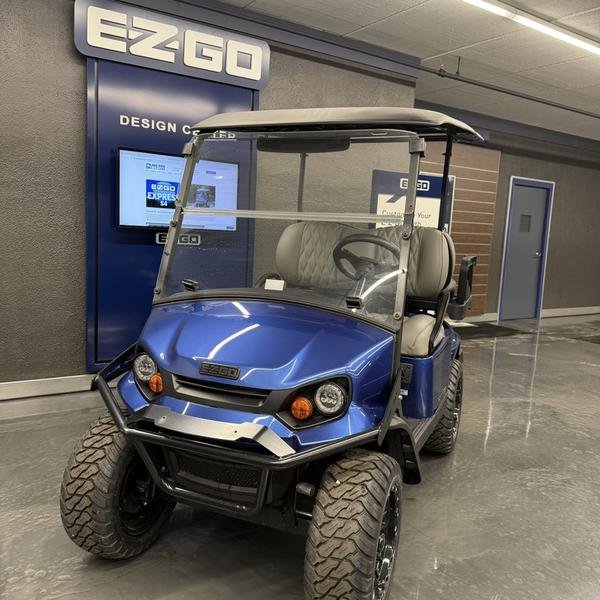

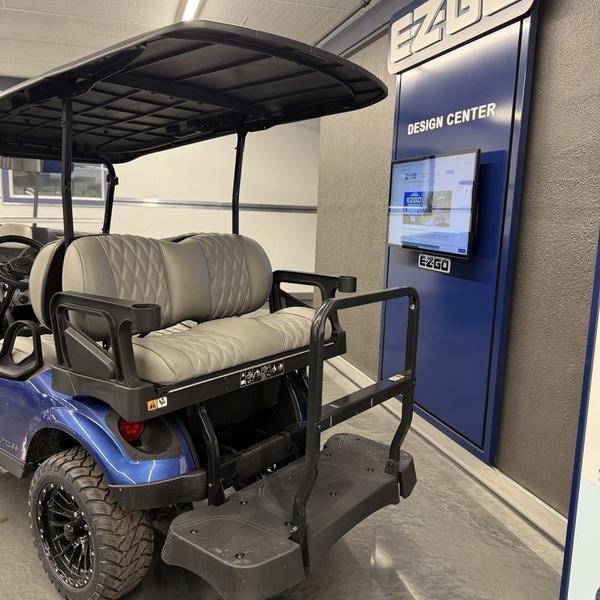

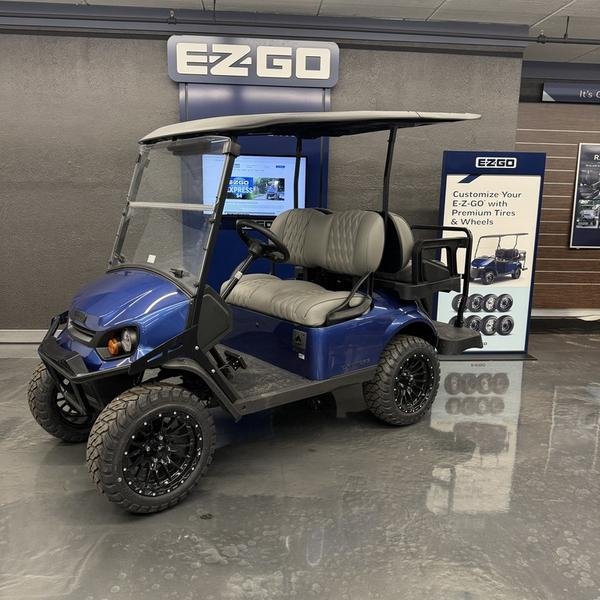

2025 E-Z-GO Express 4 ELiTE Lithium Electric Blue

Description

Manufacturer Specifications

Motor & Power System

• System Type: 56-Volt DC
• Motor Power: 11.7 hp (8.7 kW) peak

Performance

• Top Speed: Up to 19 mph (31 km/h)
• Controller: 235 Amp AC

---

Electrical System

• Voltage: 56-Volt DC

Battery

• Type: Single 56V Lithium-Ion (Standard Configuration)

Battery Charger

• Type: 56V DC
• Input: 120/230 VAC
• Certifications: UL / CSA / CE

---

Drivetrain

• Drive Type: Motor Shaft Direct Drive
• Transmission: Differential with helical gears
• Gear Selection: Dash-mounted Forward / Neutral / Reverse
• Rear Axle Ratio: 17:1 (Forward)

Steering

• Self-compensating rack and pinion

---

Chassis

• Body Finish: Injection-molded TPO
• Frame Type: Welded steel with E-coat and DuraShield powder coating

---

Suspension

• Front Suspension: Leaf springs with hydraulic shock absorbers
• Rear Suspension: Rear wheel mechanical self-adjusting drum brakes

---

Brake System

• Service Brake: Rear wheel mechanical self-adjusting drum
• Parking Brake: Self-compensating, single-point engagement

---

Wheels & Tires

• Front Track Width: 37.9 in (96.3 cm)
• Rear Track Width: 39.2 in (99.6 cm)

Tire Options:

• Commuter Package:
  • Front & Rear: 185/60 Kruizer tires on 14-inch SPDR wheels
• Explorer Package:
  • Front & Rear: 23×10 Paramount M/T tires on 14-inch black SPDR wheels

---

Dimensions

• Overall Length: 115 in (292 cm)
• Overall Width: 49.5 in (124 cm)
• Overall Height:
  • Without roof: 52 in (132 cm)
  • With roof: 82 in (208 cm)
• Wheelbase: 67.5 in (171 cm)
• Ground Clearance (at differential): 7.3 in (18.5 cm)
• Turning Radius: 11 ft (3.4 m)

---

Capacities

• Seating Capacity: 4 passengers
• Cargo Capacity (Vehicle Load): 800 lb (363 kg)

---

Weight

• Dry Weight (without batteries): 918 lb (428 kg)
• Curb Weight: 965 lb (462 kg)

---

Available Color

• Electric Blue
